ASME B16.47 Class 600 Series B Blind Flanges
Solid flange for closing a flanged opening. Match the class, facing and bolt pattern of the mating flange.
| Series | ASME B16.47 · Series B |
| Class | 600 |
| Size range | NPS 26–36 |
| Size entries | 6 |

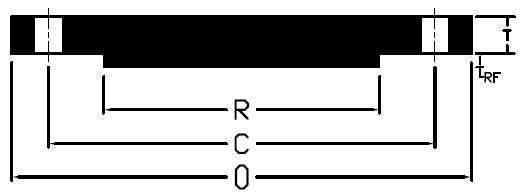

Representative form. Refer to the size table for the selected dimensions.
Dimension key
Dimensions & drilling
in = inches · lb = pounds
Scroll the table horizontally to see all dimensions. Approximate weights are for reference.
| Catalogue ref. | Nominal pipe size (NPS) | OD (O) | Min. thickness (T) | RF diameter (R) | Approx. weight | Bolt circle (C) | Bolt holes | Hole diameter |
|---|---|---|---|---|---|---|---|---|
| EG-F-090-001 | 26 | 35.00 in | 4.38 in | 28.62 in | 1195 lb | 31.75 in | 28 | 1.75 in |
| EG-F-090-002 | 28 | 37.50 in | 4.56 in | 30.88 in | 1427 lb | 34.00 in | 28 | 1.88 in |
| EG-F-090-003 | 30 | 40.25 in | 5.00 in | 33.12 in | 1800 lb | 36.50 in | 28 | 2.00 in |
| EG-F-090-004 | 32 | 42.75 in | 5.31 in | 35.25 in | 2160 lb | 38.75 in | 28 | 2.12 in |
| EG-F-090-005 | 34 | 45.75 in | 5.68 in | 37.50 in | 2645 lb | 41.50 in | 24 | 2.38 in |
| EG-F-090-006 | 36 | 47.75 in | 5.94 in | 39.75 in | 3013 lb | 43.50 in | 28 | 2.38 in |
Selection notes
The listed base dimensions exclude the 1/4 in raised face; include it when checking the finished thickness.
A flat face (FF) can be specified with the inquiry.
Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.
Specify your flange.
Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
