EG-F-008
ASME B16.5 (ANSI) Class 150 Weld Neck Flanges
Butt-weld connection with a tapered hub. Specify the bore to suit the connected pipe.
| Series | ASME B16.5 (ANSI) |
| Class | 150 |
| Size range | NPS 1/2–24 |
| Size entries | 21 |
Representative form. Refer to the size table for the selected dimensions.

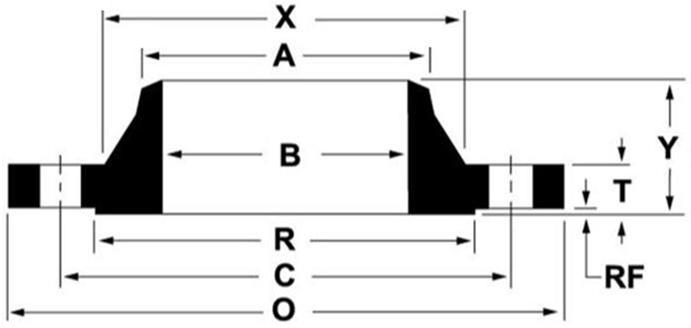

Dimension key
Dimensions & drilling
in = inches · lb = pounds
Scroll the table horizontally to see all dimensions. Approximate weights are for reference.
| Catalogue ref. | Nominal pipe size (NPS) | OD (O) | Thickness (T) | RF diameter (R) | Length through hub (Y) | Weld-end OD (A) | Hub OD (X) | Bore (B) | Approx. weight | Bolt circle (C) | Bolt holes | Hole diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EG-F-008-001 | 1/2 | 3.50 in | 0.44 in | 1.38 in | 1.88 in | 0.84 in | 1.19 in | 0.62 in | 2 lb | 2.38 in | 4 | 0.63 in |
| EG-F-008-002 | 3/4 | 3.88 in | 0.50 in | 1.69 in | 2.06 in | 1.05 in | 1.50 in | 0.82 in | 2 lb | 2.75 in | 4 | 0.63 in |
| EG-F-008-003 | 1 | 4.25 in | 0.56 in | 2.00 in | 2.19 in | 1.32 in | 1.94 in | 1.05 in | 3 lb | 3.13 in | 4 | 0.63 in |
| EG-F-008-004 | 1 1/4 | 4.63 in | 0.63 in | 2.50 in | 2.25 in | 1.66 in | 2.31 in | 1.38 in | 3 lb | 3.50 in | 4 | 0.63 in |
| EG-F-008-005 | 1 1/2 | 5.00 in | 0.69 in | 2.88 in | 2.44 in | 1.90 in | 2.56 in | 1.61 in | 4 lb | 3.88 in | 4 | 0.63 in |
| EG-F-008-006 | 2 | 6.00 in | 0.75 in | 3.63 in | 2.50 in | 2.38 in | 3.06 in | 2.07 in | 6 lb | 4.75 in | 4 | 0.75 in |
| EG-F-008-007 | 2 1/2 | 7.00 in | 0.88 in | 4.13 in | 2.75 in | 2.88 in | 3.56 in | 2.47 in | 8 lb | 5.50 in | 4 | 0.75 in |
| EG-F-008-008 | 3 | 7.50 in | 0.94 in | 5.00 in | 2.75 in | 3.50 in | 4.25 in | 3.07 in | 10 lb | 6.00 in | 4 | 0.75 in |
| EG-F-008-009 | 3 1/2 | 8.50 in | 0.94 in | 5.50 in | 2.81 in | 4.00 in | 4.81 in | 3.55 in | 12 lb | 7.00 in | 8 | 0.75 in |
| EG-F-008-010 | 4 | 9.00 in | 0.94 in | 6.19 in | 3.00 in | 4.50 in | 5.31 in | 4.03 in | 15 lb | 7.50 in | 8 | 0.75 in |
| EG-F-008-011 | 5 | 10.00 in | 0.94 in | 7.31 in | 3.50 in | 5.56 in | 6.44 in | 5.05 in | 19 lb | 8.50 in | 8 | 0.88 in |
| EG-F-008-012 | 6 | 11.00 in | 1.00 in | 8.50 in | 3.50 in | 6.63 in | 7.56 in | 6.07 in | 24 lb | 9.50 in | 8 | 0.88 in |
| EG-F-008-013 | 8 | 13.50 in | 1.13 in | 10.63 in | 4.00 in | 8.63 in | 9.69 in | 7.98 in | 39 lb | 11.75 in | 8 | 0.88 in |
| EG-F-008-014 | 10 | 16.00 in | 1.19 in | 12.75 in | 4.00 in | 10.75 in | 12.00 in | 10.02 in | 52 lb | 14.25 in | 12 | 1.00 in |
| EG-F-008-015 | 12 | 19.00 in | 1.25 in | 15.00 in | 4.50 in | 12.75 in | 14.38 in | 12.00 in | 80 lb | 17.00 in | 12 | 1.00 in |
| EG-F-008-016 | 14 | 21.00 in | 1.38 in | 16.25 in | 5.00 in | 14.00 in | 15.75 in | 13.25 in | 110 lb | 18.75 in | 12 | 1.13 in |
| EG-F-008-017 | 16 | 23.50 in | 1.44 in | 18.50 in | 5.00 in | 16.00 in | 18.00 in | 15.25 in | 140 lb | 21.25 in | 16 | 1.13 in |
| EG-F-008-018 | 18 | 25.00 in | 1.56 in | 21.00 in | 5.50 in | 18.00 in | 19.88 in | 17.25 in | 150 lb | 22.75 in | 16 | 1.25 in |
| EG-F-008-019 | 20 | 27.50 in | 1.69 in | 23.00 in | 5.69 in | 20.00 in | 22.00 in | 19.25 in | 180 lb | 25.00 in | 20 | 1.25 in |
| EG-F-008-020 | 22 | 29.50 in | 1.81 in | 25.25 in | 5.88 in | 22.00 in | 24.25 in | 21.25 in | 225 lb | 27.25 in | 20 | 1.38 in |
| EG-F-008-021 | 24 | 32.00 in | 1.88 in | 27.25 in | 6.00 in | 24.00 in | 26.13 in | 23.25 in | 260 lb | 29.50 in | 20 | 1.38 in |
Selection notes
Facing in this dimensional series: 1/16 in raised face (RF).
A flat face (FF) can be specified with the inquiry.
Confirm the bore against the required pipe schedule and wall thickness.
Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.
Specify your flange.
Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
