ASME B16.5 (ANSI) Class 1500 Lap Joint Flanges
Backing flange used with a matching stub end. The bore radius and stub-end geometry must be coordinated.
| Series | ASME B16.5 (ANSI) |
| Class | 1500 |
| Size range | NPS 1/2–24 |
| Size entries | 19 |

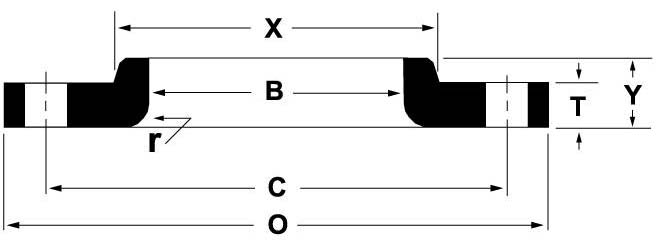

Representative form. Refer to the size table for the selected dimensions.
Dimension key
Dimensions & drilling
in = inches · lb = pounds
Scroll the table horizontally to see all dimensions. Approximate weights are for reference.
| Catalogue ref. | Nominal pipe size (NPS) | OD (O) | Thickness (T) | Length through hub (Y) | Hub OD (X) | Radius (r) | Bore (B) | Approx. weight | Bolt circle (C) | Bolt holes | Hole diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EG-F-041-001 | 1/2 | 4.75 in | 0.88 in | 1.25 in | 1.50 in | 0.13 in | 0.90 in | 4 lb | 3.25 in | 4 | 0.88 in |
| EG-F-041-002 | 3/4 | 5.13 in | 1.00 in | 1.38 in | 1.75 in | 0.13 in | 1.11 in | 5 lb | 3.50 in | 4 | 0.88 in |
| EG-F-041-003 | 1 | 5.88 in | 1.13 in | 1.63 in | 2.06 in | 0.13 in | 1.38 in | 8 lb | 4.00 in | 4 | 1.00 in |
| EG-F-041-004 | 1 1/4 | 6.25 in | 1.13 in | 1.63 in | 2.50 in | 0.19 in | 1.72 in | 9 lb | 4.38 in | 4 | 1.00 in |
| EG-F-041-005 | 1 1/2 | 7.00 in | 1.25 in | 1.75 in | 2.75 in | 0.25 in | 1.97 in | 12 lb | 4.88 in | 4 | 1.13 in |
| EG-F-041-006 | 2 | 8.50 in | 1.50 in | 2.25 in | 4.13 in | 0.31 in | 2.46 in | 25 lb | 6.50 in | 8 | 1.00 in |
| EG-F-041-007 | 2 1/2 | 9.63 in | 1.63 in | 2.50 in | 4.88 in | 0.31 in | 2.97 in | 35 lb | 7.50 in | 8 | 1.13 in |
| EG-F-041-008 | 3 | 10.50 in | 1.88 in | 2.88 in | 5.25 in | 0.38 in | 3.60 in | 47 lb | 8.00 in | 8 | 1.25 in |
| EG-F-041-009 | 4 | 12.25 in | 2.13 in | 3.56 in | 6.38 in | 0.38 in | 4.60 in | 75 lb | 9.50 in | 8 | 1.38 in |
| EG-F-041-010 | 5 | 14.75 in | 2.88 in | 4.13 in | 7.75 in | 0.44 in | 5.69 in | 140 lb | 11.50 in | 8 | 1.63 in |
| EG-F-041-011 | 6 | 15.50 in | 3.25 in | 4.69 in | 9.00 in | 0.44 in | 6.75 in | 170 lb | 12.50 in | 12 | 1.50 in |
| EG-F-041-012 | 8 | 19.00 in | 3.63 in | 5.63 in | 11.50 in | 0.50 in | 8.75 in | 285 lb | 15.50 in | 12 | 1.75 in |
| EG-F-041-013 | 10 | 23.00 in | 4.25 in | 7.00 in | 14.50 in | 0.50 in | 10.92 in | 485 lb | 19.00 in | 12 | 2.00 in |
| EG-F-041-014 | 12 | 26.50 in | 4.88 in | 8.63 in | 17.75 in | 0.50 in | 12.92 in | 630 lb | 22.50 in | 16 | 2.13 in |
| EG-F-041-015 | 14 | 29.50 in | 5.25 in | 9.50 in | 19.50 in | 0.50 in | 14.18 in | 890 lb | 25.00 in | 16 | 2.38 in |
| EG-F-041-016 | 16 | 32.50 in | 5.75 in | 10.25 in | 21.75 in | 0.50 in | 16.19 in | 1150 lb | 27.75 in | 16 | 2.63 in |
| EG-F-041-017 | 18 | 36.00 in | 6.38 in | 10.88 in | 23.50 in | 0.50 in | 18.20 in | 1475 lb | 30.50 in | 16 | 2.88 in |
| EG-F-041-018 | 20 | 38.75 in | 7.00 in | 11.50 in | 25.25 in | 0.50 in | 20.25 in | 1775 lb | 32.75 in | 16 | 3.13 in |
| EG-F-041-019 | 24 | 46.00 in | 8.00 in | 13.00 in | 30.00 in | 0.50 in | 24.25 in | 2825 lb | 39.00 in | 16 | 3.63 in |
Selection notes
Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.
