EG-F-067

Industry Standard Class 300 Series A Slip-On Bolting Matches

Slip-over pipe connection. Select the bore, flange facing and drilling pattern for the mating connection.

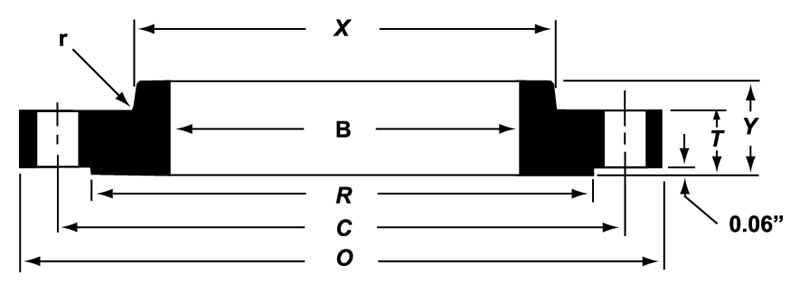

Representative form. Refer to the size table for the selected dimensions.

Dimension key

in = inches · lb = pounds

Scroll the table horizontally to see all dimensions. Approximate weights are for reference.

Catalogue ref.	Nominal pipe size (NPS)	OD (O)	Thickness (T)	RF diameter (R)	Length through hub (Y)	Hub OD (X)	Min. fillet radius (r)	Bore (B)	Approx. weight	Bolt circle (C)	Bolt holes	Hole diameter
EG-F-067-001	26	38.25 in	3.12 in	29.50 in	5.37 in	30.25 in	0.38 in	26.25 in	595 lb	34.50 in	28	1.75 in
EG-F-067-002	28	40.75 in	3.38 in	31.50 in	5.68 in	32.75 in	0.44 in	28.25 in	729 lb	37.00 in	28	1.75 in
EG-F-067-003	30	43.00 in	3.62 in	33.75 in	6.12 in	34.75 in	0.44 in	30.25 in	840 lb	39.25 in	28	1.88 in
EG-F-067-004	32	45.25 in	3.88 in	36.00 in	6.56 in	36.75 in	0.44 in	32.25 in	964 lb	41.50 in	28	2.00 in
EG-F-067-005	34	47.50 in	4.00 in	38.00 in	6.81 in	38.75 in	0.50 in	34.25 in	1076 lb	43.50 in	28	2.00 in
EG-F-067-006	36	50.00 in	4.12 in	40.25 in	7.06 in	41.00 in	0.50 in	36.25 in	1202 lb	46.00 in	32	2.12 in
EG-F-067-007	38	46.00 in	5.31 in	40.50 in	6.06 in	39.00 in	0.50 in	38.25 in	687 lb	43.00 in	32	1.62 in
EG-F-067-008	40	48.75 in	5.56 in	42.75 in	6.56 in	41.25 in	0.50 in	40.25 in	840 lb	45.50 in	32	1.75 in
EG-F-067-009	42	50.75 in	5.81 in	44.75 in	6.81 in	43.25 in	0.50 in	42.25 in	922 lb	47.50 in	32	1.75 in
EG-F-067-010	44	53.25 in	6.06 in	47.00 in	6.86 in	45.25 in	0.50 in	44.25 in	1055 lb	49.75 in	32	1.88 in
EG-F-067-011	46	55.75 in	6.31 in	49.00 in	7.06 in	47.25 in	0.50 in	46.25 in	1205 lb	52.00 in	28	2.00 in
EG-F-067-012	48	57.75 in	6.56 in	51.25 in	7.18 in	49.25 in	0.50 in	48.25 in	1306 lb	54.00 in	32	2.00 in

Facing in this dimensional series: 1/16 in raised face (RF).

A flat face (FF) can be specified with the inquiry.

This is an industry bolt-pattern matching series. It is not an ASME B16.47 flange specification. Confirm the complete mating dimensions.

Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.

Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
