EG-F-049
Table 7 AWWA C207-18 Class D Blind Flanges
Solid flange for closing a flanged opening. Match the class, facing and bolt pattern of the mating flange.
| Series | AWWA C207 |
| Class | D |
| Size range | NPS 4–72 |
| Size entries | 30 |

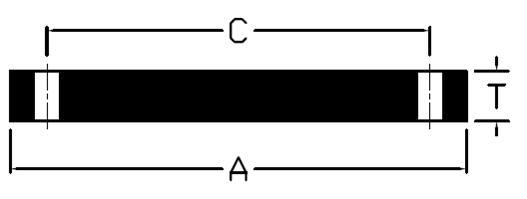

Representative form. Refer to the size table for the selected dimensions.
Dimension key
Dimensions & drilling
in = inches · lb = pounds
Scroll the table horizontally to see all dimensions. Approximate weights are for reference.
| Catalogue ref. | Nominal pipe size (NPS) | Working pressure | OD (A) | Min. thickness (T) | Approx. weight | Bolt holes | Hole diameter | Bolt circle (C) |
|---|---|---|---|---|---|---|---|---|
| EG-F-049-001 | 4 | 175 psi | 9.00 in | 0.63 in | 11 lb | 8 | 0.75 in | 7.50 in |
| EG-F-049-002 | 5 | 175 psi | 10.00 in | 0.65 in | 14 lb | 8 | 0.88 in | 8.50 in |
| EG-F-049-003 | 6 | 175 psi | 11.00 in | 0.69 in | 18 lb | 8 | 0.88 in | 9.50 in |
| EG-F-049-004 | 8 | 175 psi | 13.50 in | 0.81 in | 32 lb | 8 | 0.88 in | 11.75 in |
| EG-F-049-005 | 10 | 175 psi | 16.00 in | 0.95 in | 52 lb | 12 | 1.00 in | 14.25 in |
| EG-F-049-006 | 12 | 175 psi | 19.00 in | 1.12 in | 87 lb | 12 | 1.00 in | 17.00 in |
| EG-F-049-007 | 14 | 175 psi | 21.00 in | 1.13 in | 108 lb | 12 | 1.13 in | 18.75 in |
| EG-F-049-008 | 16 | 175 psi | 23.50 in | 1.27 in | 150 lb | 16 | 1.13 in | 21.25 in |
| EG-F-049-009 | 18 | 175 psi | 25.00 in | 1.33 in | 178 lb | 16 | 1.25 in | 22.75 in |
| EG-F-049-010 | 20 | 175 psi | 27.50 in | 1.45 in | 234 lb | 20 | 1.25 in | 25.00 in |
| EG-F-049-011 | 22 | 175 psi | 29.50 in | 1.57 in | 291 lb | 20 | 1.38 in | 27.25 in |
| EG-F-049-012 | 24 | 175 psi | 32.00 in | 1.66 in | 365 lb | 20 | 1.38 in | 29.50 in |
| EG-F-049-013 | 26 | 175 psi | 34.25 in | 1.79 in | 450 lb | 24 | 1.38 in | 31.75 in |
| EG-F-049-014 | 28 | 175 psi | 36.50 in | 1.91 in | 545 lb | 28 | 1.38 in | 34.00 in |
| EG-F-049-015 | 30 | 175 psi | 38.75 in | 2.01 in | 650 lb | 28 | 1.38 in | 36.00 in |
| EG-F-049-016 | 32 | 175 psi | 41.75 in | 2.15 in | 800 lb | 28 | 1.63 in | 38.50 in |
| EG-F-049-017 | 34 | 175 psi | 43.75 in | 2.25 in | 917 lb | 32 | 1.63 in | 40.50 in |
| EG-F-049-018 | 36 | 175 psi | 46.00 in | 2.37 in | 1071 lb | 32 | 1.63 in | 42.75 in |
| EG-F-049-019 | 38 | 175 psi | 48.75 in | 2.51 in | 1278 lb | 32 | 1.63 in | 45.25 in |
| EG-F-049-020 | 40 | 175 psi | 50.75 in | 2.61 in | 1440 lb | 36 | 1.63 in | 47.25 in |
| EG-F-049-021 | 42 | 175 psi | 53.00 in | 2.73 in | 1650 lb | 36 | 1.63 in | 49.50 in |
| EG-F-049-022 | 44 | 175 psi | 55.25 in | 2.85 in | 1868 lb | 40 | 1.63 in | 51.75 in |
| EG-F-049-023 | 46 | 175 psi | 57.25 in | 2.95 in | 2085 lb | 40 | 1.63 in | 53.75 in |
| EG-F-049-024 | 48 | 175 psi | 59.50 in | 3.07 in | 2345 lb | 44 | 1.63 in | 56.00 in |
| EG-F-049-025 | 50 | 175 psi | 61.75 in | 3.20 in | 2871 lb | 44 | 1.88 in | 58.25 in |
| EG-F-049-026 | 52 | 175 psi | 64.00 in | 3.32 in | 3192 lb | 44 | 1.88 in | 60.50 in |
| EG-F-049-027 | 54 | 175 psi | 66.25 in | 3.44 in | 3240 lb | 44 | 1.88 in | 62.75 in |
| EG-F-049-028 | 60 | 175 psi | 73.00 in | 3.78 in | 4330 lb | 52 | 1.88 in | 69.25 in |
| EG-F-049-029 | 66 | 175 psi | 80.00 in | 4.14 in | 5725 lb | 52 | 1.88 in | 76.00 in |
| EG-F-049-030 | 72 | 175 psi | 86.50 in | 4.48 in | 7250 lb | 60 | 1.88 in | 82.50 in |
Selection notes
The blind flange center island must match the mating flange.
The standard edition shown in the title identifies this dimensional table. Include the required project edition in the RFQ.
Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.
Specify your flange.
Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
