Adjustable Steel Props
Telescopic steel props for horizontal formwork, with pin and threaded adjustment. The range includes several adjustment lengths and finish options.
Product options · Dimensions · Quantity
Specifications & options
Dimensions below describe the available catalogue options. Please specify the required model and confirm the complete assembly details with your enquiry.
| Model | Adjustment range (m) | Inner tube OD × wall (mm) | Outer tube OD × wall (mm) | Steel grade | Finish options |
|---|---|---|---|---|---|
| XLJZ-01 | 1.6–3.0 | 48 × 3.0 | 60 × 3.0 | Q235 | Hot-dip galvanized / painted |
| XLJZ-02 | 2.0–3.5 | 48 × 3.0 | 60 × 3.0 | Q235 | Hot-dip galvanized / painted |
| XLJZ-03 | 2.2–4.0 | 48 × 3.0 | 60 × 3.0 | Q235 | Hot-dip galvanized / painted |
| XLJZ-04 | 3.0–4.8 | 48 × 3.0 | 60 × 3.0 | Q235 | Hot-dip galvanized / painted |
| XLJZ-05 | 1.5–3.0 | 48 × 2.5 | 60 × 2.5 | Q235 | Hot-dip galvanized / painted |
| XLJZ-06 | 2.0–3.5 | 48 × 2.5 | 60 × 2.5 | Q235 | Hot-dip galvanized / painted |
| XLJZ-07 | 2.5–4.0 | 48 × 2.5 | 60 × 2.5 | Q235 | Hot-dip galvanized / painted |
| XLJZ-08 | 1.5–3.0 | 48 × 2.0 | 60 × 2.0 | Q235 | Hot-dip galvanized / painted |
| XLJZ-09 | 2.1–3.6 | 48 × 2.0 | 60 × 2.0 | Q235 | Hot-dip galvanized / painted |
| XLJZ-10 | 2.5–4.0 | 48 × 2.0 | 60 × 2.0 | Q235 | Hot-dip galvanized / painted |

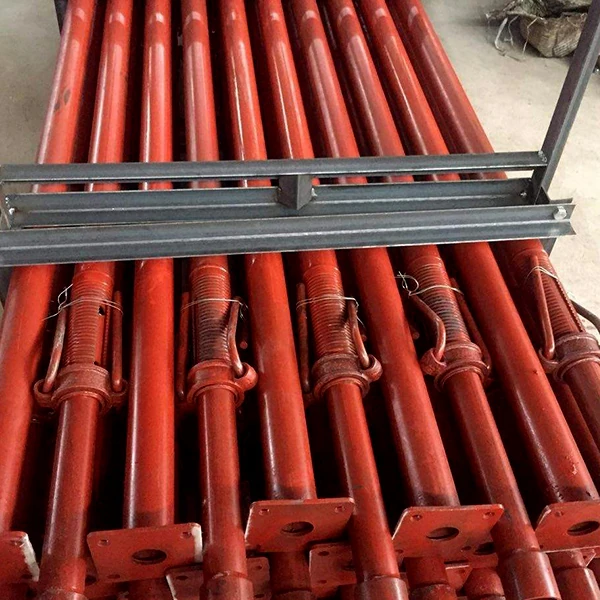

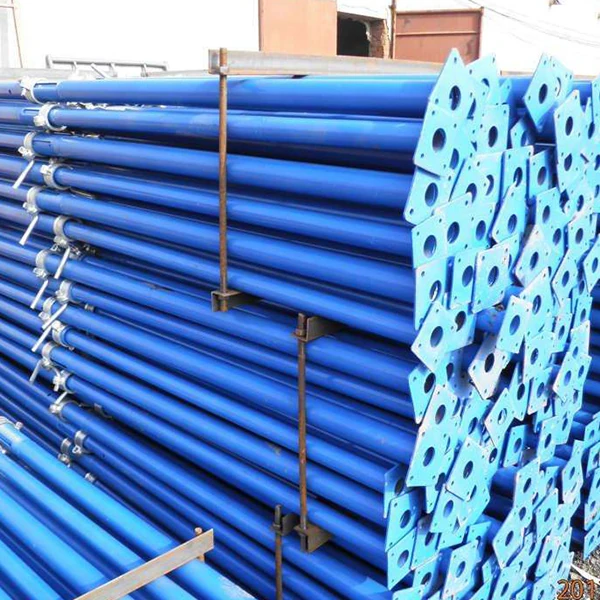

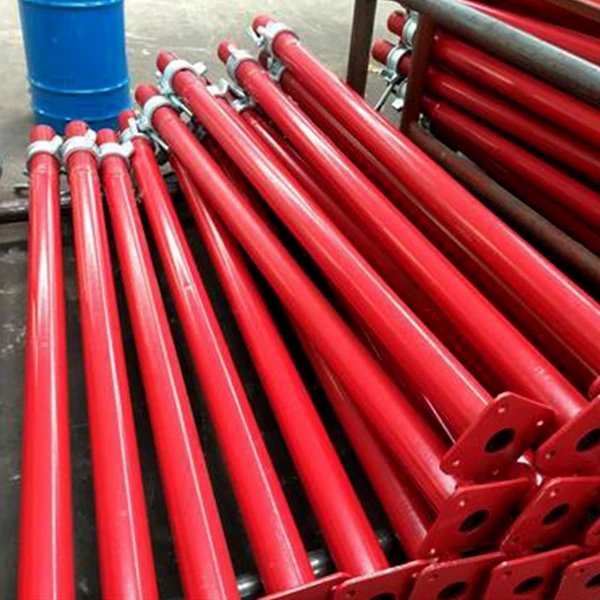

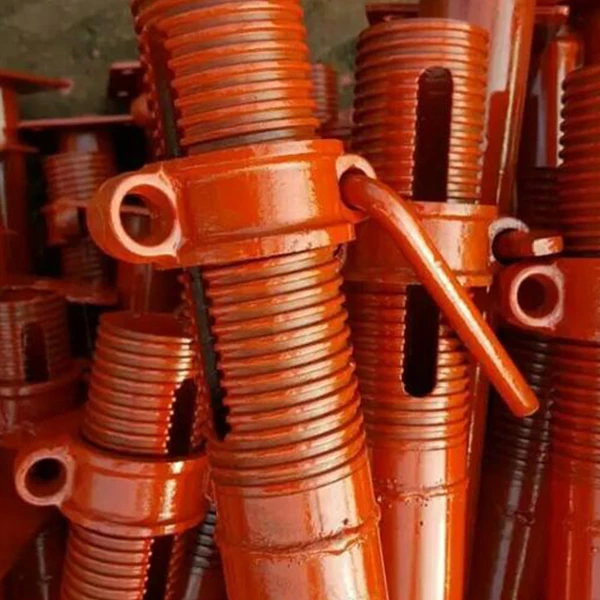

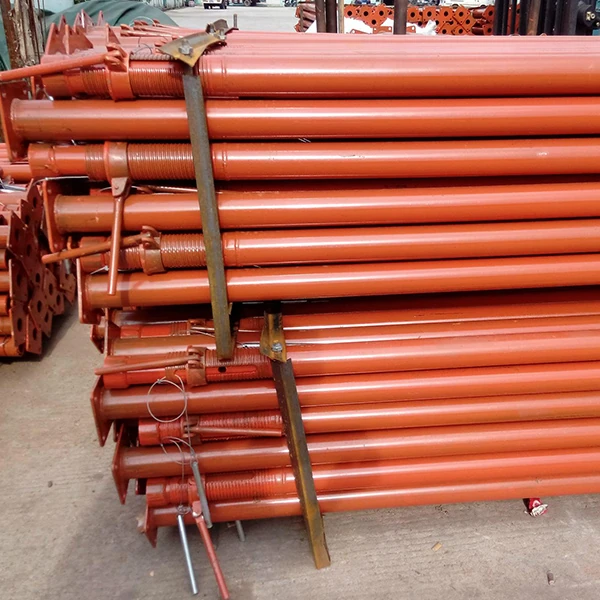

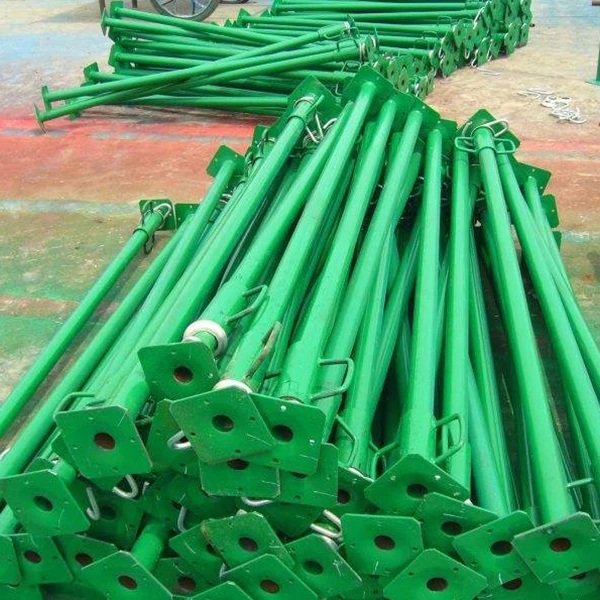

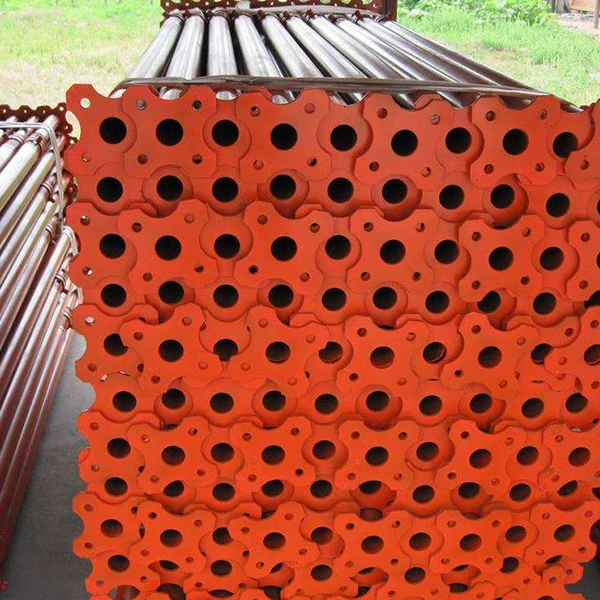

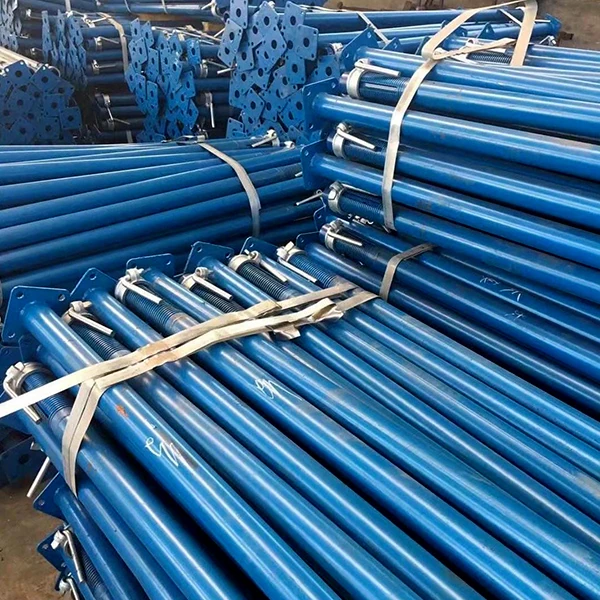

Product views
View remaining product photos (4)
Ordering information
What should I include in my enquiry?
Include the product name or model, dimensions, quantity, surface finish and destination. Drawings or photographs of the mating parts help clarify compatibility.
Can the parts be selected from a photograph alone?
Use photographs to identify the product form. Final dimensions and connections should be matched to the project drawings and confirmed in the quotation.
