EG-F-072

ASME B16.47 Class 150 Series A Blind Flanges

Solid flange for closing a flanged opening. Match the class, facing and bolt pattern of the mating flange.

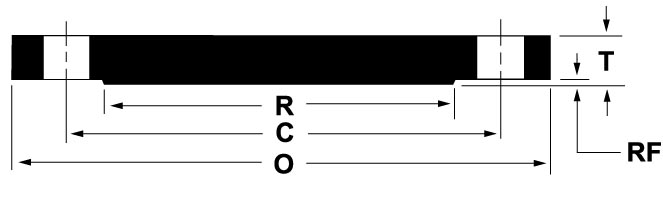

Representative form. Refer to the size table for the selected dimensions.

Dimension key

in = inches · lb = pounds

Scroll the table horizontally to see all dimensions. Approximate weights are for reference.

Catalogue ref.	Nominal pipe size (NPS)	OD (O)	Min. thickness (T)	RF diameter (R)	Approx. weight	Bolt circle (C)	Bolt holes	Hole diameter
EG-F-072-001	26	34.25 in	2.69 in	29.50 in	702 lb	31.75 in	24	1.38 in
EG-F-072-002	28	36.50 in	2.81 in	31.50 in	833 lb	34.00 in	28	1.38 in
EG-F-072-003	30	38.75 in	2.94 in	33.75 in	982 lb	36.00 in	28	1.38 in
EG-F-072-004	32	41.75 in	3.19 in	36.00 in	1238 lb	38.50 in	28	1.62 in
EG-F-072-005	34	43.75 in	3.25 in	38.00 in	1384 lb	40.50 in	32	1.62 in
EG-F-072-006	36	46.00 in	3.56 in	40.25 in	1676 lb	42.75 in	32	1.62 in
EG-F-072-007	38	48.75 in	3.44 in	42.25 in	1819 lb	45.25 in	32	1.62 in
EG-F-072-008	40	50.75 in	3.56 in	44.25 in	2040 lb	47.25 in	36	1.62 in
EG-F-072-009	42	53.00 in	3.81 in	47.00 in	2380 lb	49.50 in	36	1.62 in
EG-F-072-010	44	55.25 in	4.00 in	49.00 in	2715 lb	51.75 in	40	1.62 in
EG-F-072-011	46	57.25 in	4.06 in	51.00 in	2961 lb	53.75 in	40	1.62 in
EG-F-072-012	48	59.50 in	4.25 in	53.50 in	3350 lb	56.00 in	44	1.62 in
EG-F-072-013	50	61.75 in	4.38 in	55.50 in	3716 lb	58.25 in	44	1.88 in
EG-F-072-014	52	64.00 in	4.56 in	57.50 in	4156 lb	60.50 in	44	1.88 in
EG-F-072-015	54	66.25 in	4.75 in	59.50 in	4639 lb	62.75 in	44	1.88 in
EG-F-072-016	56	68.75 in	4.88 in	62.00 in	5130 lb	65.00 in	48	1.88 in
EG-F-072-017	58	71.00 in	5.06 in	64.00 in	5675 lb	67.25 in	48	1.88 in
EG-F-072-018	60	73.00 in	5.19 in	66.00 in	6155 lb	69.25 in	52	1.88 in

Facing in this dimensional series: 1/16 in raised face (RF).

A flat face (FF) can be specified with the inquiry.

Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.

Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
