EG-F-057
Industry Standard Class 125/150 Slip-On Flanges
Slip-over pipe connection. Select the bore, flange facing and drilling pattern for the mating connection.
| Series | Industry Standard |
| Class | 125/150 |
| Size range | NPS 26–96 |
| Size entries | 22 |
Representative form. Refer to the size table for the selected dimensions.

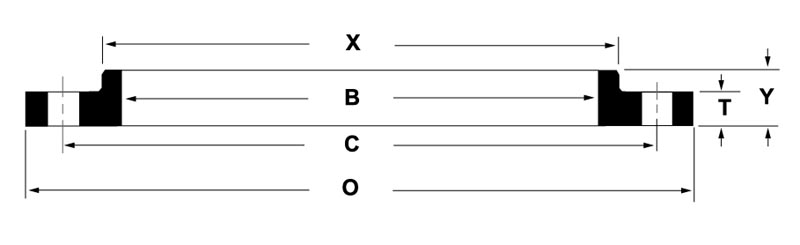

Dimension key
Dimensions & drilling
in = inches · lb = pounds
Scroll the table horizontally to see all dimensions. Approximate weights are for reference.
| Catalogue ref. | Nominal pipe size (NPS) | OD (O) | Thickness (T) | Overall height (Y) | Hub OD (X) | ID (B) | Approx. weight | Bolt holes | Hole diameter | Bolt circle (C) |
|---|---|---|---|---|---|---|---|---|---|---|
| EG-F-057-001 | 26 | 34.25 in | 2.00 in | 3.38 in | 28.50 in | 26.25 in | 235 lb | 24 | 1.38 in | 31.75 in |
| EG-F-057-002 | 28 | 36.50 in | 2.06 in | 3.44 in | 30.75 in | 28.25 in | 270 lb | 28 | 1.38 in | 34.00 in |
| EG-F-057-003 | 30 | 38.75 in | 2.13 in | 3.50 in | 32.75 in | 30.25 in | 305 lb | 28 | 1.38 in | 36.00 in |
| EG-F-057-004 | 32 | 41.75 in | 2.25 in | 3.63 in | 35.00 in | 32.25 in | 375 lb | 28 | 1.63 in | 38.50 in |
| EG-F-057-005 | 34 | 43.75 in | 2.31 in | 3.69 in | 37.00 in | 34.25 in | 400 lb | 32 | 1.63 in | 40.50 in |
| EG-F-057-006 | 36 | 46.00 in | 2.38 in | 3.75 in | 39.25 in | 36.25 in | 450 lb | 32 | 1.63 in | 42.75 in |
| EG-F-057-007 | 38 | 48.75 in | 2.38 in | 3.75 in | 41.75 in | 38.25 in | 530 lb | 32 | 1.63 in | 45.25 in |
| EG-F-057-008 | 40 | 50.75 in | 2.50 in | 3.88 in | 43.75 in | 40.25 in | 570 lb | 36 | 1.63 in | 47.25 in |
| EG-F-057-009 | 42 | 53.00 in | 2.63 in | 4.00 in | 46.00 in | 42.25 in | 650 lb | 36 | 1.63 in | 49.50 in |
| EG-F-057-010 | 44 | 55.25 in | 2.63 in | 4.00 in | 48.00 in | 44.25 in | 690 lb | 40 | 1.63 in | 51.75 in |
| EG-F-057-011 | 46 | 57.25 in | 2.69 in | 4.06 in | 50.00 in | 46.25 in | 730 lb | 40 | 1.63 in | 53.75 in |
| EG-F-057-012 | 48 | 59.50 in | 2.75 in | 4.13 in | 52.25 in | 48.25 in | 800 lb | 44 | 1.63 in | 56.00 in |
| EG-F-057-013 | 50 | 61.75 in | 2.75 in | 4.13 in | 54.25 in | 50.25 in | 830 lb | 44 | 1.88 in | 58.25 in |
| EG-F-057-014 | 52 | 64.00 in | 2.88 in | 4.25 in | 56.50 in | 52.25 in | 920 lb | 44 | 1.88 in | 60.50 in |
| EG-F-057-015 | 54 | 66.25 in | 3.00 in | 4.38 in | 58.75 in | 54.25 in | 1025 lb | 44 | 1.88 in | 62.75 in |
| EG-F-057-016 | 60 | 73.00 in | 3.13 in | 4.50 in | 65.25 in | 60.25 in | 1250 lb | 52 | 1.88 in | 69.25 in |
| EG-F-057-017 | 66 | 80.00 in | 3.38 in | 4.88 in | 71.50 in | 66.25 in | 1625 lb | 52 | 1.88 in | 76.00 in |
| EG-F-057-018 | 72 | 86.50 in | 3.50 in | 5.00 in | 78.50 in | 72.25 in | 1925 lb | 60 | 1.88 in | 82.50 in |
| EG-F-057-019 | 78 | 93.00 in | 3.88 in | 5.38 in | 84.50 in | 78.25 in | 2525 lb | 64 | 2.13 in | 89.00 in |
| EG-F-057-020 | 84 | 99.75 in | 3.88 in | 5.38 in | 90.50 in | 84.25 in | 2600 lb | 64 | 2.13 in | 95.50 in |
| EG-F-057-021 | 90 | 106.50 in | 4.25 in | 5.75 in | 96.75 in | 90.25 in | 3150 lb | 68 | 2.38 in | 102.00 in |
| EG-F-057-022 | 96 | 113.25 in | 4.25 in | 5.75 in | 102.75 in | 96.25 in | 3275 lb | 68 | 2.38 in | 108.50 in |
Selection notes
This dimensional series uses a flat face (FF).
Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.
Specify your flange.
Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
