EG-F-062
Industry Standard Class 175 Slip-On Flanges
Slip-over pipe connection. Select the bore, flange facing and drilling pattern for the mating connection.
| Series | Industry Standard |
| Class | 175 |
| Size range | NPS 26–96 |
| Size entries | 20 |
Representative form. Refer to the size table for the selected dimensions.

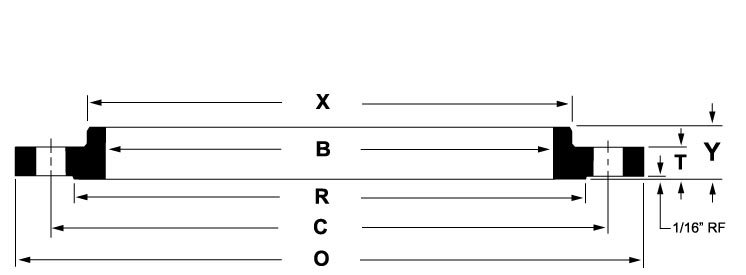

Dimension key
Dimensions & drilling
in = inches · lb = pounds
Scroll the table horizontally to see all dimensions. Approximate weights are for reference.
| Catalogue ref. | Nominal pipe size (NPS) | OD (O) | Thickness (T) | RF diameter (R) | Length through hub (Y) | Hub base OD (X) | Bore (B) | Approx. weight | Bolt circle (C) | Bolt holes | Hole diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EG-F-062-001 | 26 | 31.50 in | 1.38 in | 29.00 in | 2.75 in | 27.63 in | 26.25 in | 105 lb | 29.88 in | 28 | 0.88 in |
| EG-F-062-002 | 28 | 33.50 in | 1.38 in | 31.00 in | 2.75 in | 29.63 in | 28.25 in | 115 lb | 31.88 in | 28 | 0.88 in |
| EG-F-062-003 | 30 | 35.75 in | 1.38 in | 33.25 in | 2.75 in | 31.88 in | 30.25 in | 130 lb | 34.13 in | 36 | 0.88 in |
| EG-F-062-004 | 32 | 37.75 in | 1.38 in | 35.25 in | 2.75 in | 33.88 in | 32.25 in | 140 lb | 36.13 in | 36 | 0.88 in |
| EG-F-062-005 | 34 | 40.25 in | 1.75 in | 37.38 in | 3.38 in | 35.88 in | 34.25 in | 200 lb | 38.38 in | 36 | 1.00 in |
| EG-F-062-006 | 36 | 42.25 in | 1.75 in | 39.38 in | 3.38 in | 37.88 in | 36.25 in | 210 lb | 40.38 in | 36 | 1.00 in |
| EG-F-062-007 | 38 | 44.25 in | 2.00 in | 41.38 in | 3.75 in | 39.88 in | 38.25 in | 250 lb | 42.38 in | 36 | 1.00 in |
| EG-F-062-008 | 40 | 46.25 in | 2.00 in | 43.38 in | 4.00 in | 41.88 in | 40.25 in | 270 lb | 44.38 in | 40 | 1.00 in |
| EG-F-062-009 | 42 | 49.00 in | 2.38 in | 45.75 in | 4.38 in | 44.13 in | 42.25 in | 365 lb | 46.88 in | 40 | 1.13 in |
| EG-F-062-010 | 44 | 51.00 in | 2.38 in | 47.75 in | 4.38 in | 46.13 in | 44.25 in | 380 lb | 48.88 in | 40 | 1.13 in |
| EG-F-062-011 | 46 | 53.00 in | 2.38 in | 49.75 in | 4.63 in | 48.13 in | 46.25 in | 410 lb | 50.88 in | 40 | 1.13 in |
| EG-F-062-012 | 48 | 55.00 in | 2.63 in | 51.75 in | 4.88 in | 50.13 in | 48.25 in | 460 lb | 52.88 in | 44 | 1.13 in |
| EG-F-062-013 | 50 | 57.00 in | 2.63 in | 53.75 in | 4.88 in | 52.13 in | 50.25 in | 480 lb | 54.88 in | 44 | 1.13 in |
| EG-F-062-014 | 52 | 59.50 in | 3.00 in | 56.00 in | 5.38 in | 54.25 in | 52.25 in | 600 lb | 57.25 in | 44 | 1.25 in |
| EG-F-062-015 | 54 | 61.50 in | 3.00 in | 58.00 in | 5.38 in | 56.25 in | 54.25 in | 620 lb | 59.25 in | 44 | 1.25 in |
| EG-F-062-016 | 60 | 67.50 in | 3.13 in | 64.00 in | 5.88 in | 62.25 in | 60.25 in | 730 lb | 65.25 in | 48 | 1.25 in |
| EG-F-062-017 | 66 | 73.50 in | 4.00 in | 70.00 in | 6.88 in | 68.50 in | 66.25 in | 1000 lb | 71.25 in | 56 | 1.25 in |
| EG-F-062-018 | 72 | 80.00 in | 5.00 in | 76.50 in | 8.00 in | 74.50 in | 72.25 in | 1400 lb | 77.75 in | 64 | 1.25 in |
| EG-F-062-019 | 84 | 94.00 in | 5.00 in | 90.13 in | 8.50 in | 88.00 in | 84.25 in | 2250 lb | 91.50 in | 72 | 1.38 in |
| EG-F-062-020 | 96 | 106.00 in | 5.00 in | 102.13 in | 9.00 in | 100.00 in | 96.25 in | 2600 lb | 103.50 in | 88 | 1.38 in |
Selection notes
Facing in this dimensional series: 1/16 in raised face (RF).
A flat face (FF) can be specified with the inquiry.
Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.
Specify your flange.
Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
