EG-F-053

Industry Standard Class 75 Slip-On Flanges

Slip-over pipe connection. Select the bore, flange facing and drilling pattern for the mating connection.

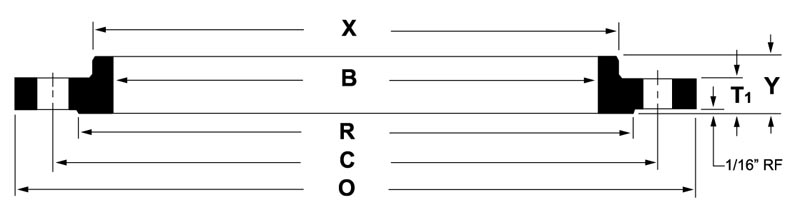

Representative form. Refer to the size table for the selected dimensions.

Dimension key

in = inches · lb = pounds

Scroll the table horizontally to see all dimensions. Approximate weights are for reference.

Catalogue ref.	Nominal pipe size (NPS)	OD (O)	Thickness (T1)	RF diameter (R)	Length through hub (Y)	Hub base OD (X)	Bore (B)	Approx. weight	Bolt circle (C)	Bolt holes	Hole diameter
EG-F-053-001	26	33.00 in	1.25 in	30.00 in	2.25 in	28.50 in	26.25 in	120 lb	31.00 in	32	1.00 in
EG-F-053-002	28	35.00 in	1.25 in	32.00 in	2.25 in	30.50 in	28.25 in	140 lb	33.00 in	36	1.00 in
EG-F-053-003	30	37.00 in	1.25 in	34.00 in	2.25 in	32.50 in	30.25 in	150 lb	35.00 in	36	1.00 in
EG-F-053-004	32	39.50 in	1.25 in	36.25 in	2.50 in	34.63 in	32.25 in	170 lb	37.38 in	40	1.13 in
EG-F-053-005	34	41.50 in	1.25 in	38.25 in	2.50 in	36.63 in	34.25 in	180 lb	39.38 in	40	1.13 in
EG-F-053-006	36	43.50 in	1.25 in	40.25 in	2.50 in	38.63 in	36.25 in	190 lb	41.38 in	44	1.13 in
EG-F-053-007	42	50.00 in	1.25 in	46.50 in	2.75 in	44.75 in	42.25 in	235 lb	47.75 in	48	1.25 in
EG-F-053-008	48	56.00 in	1.25 in	52.50 in	2.88 in	50.75 in	48.25 in	270 lb	53.75 in	56	1.25 in
EG-F-053-009	54	62.50 in	1.38 in	59.00 in	3.13 in	57.25 in	54.25 in	335 lb	60.25 in	68	1.25 in
EG-F-053-010	60	68.50 in	1.63 in	65.00 in	3.63 in	63.25 in	60.25 in	450 lb	66.25 in	72	1.25 in
EG-F-053-011	66	75.50 in	1.75 in	71.63 in	4.00 in	69.50 in	66.25 in	590 lb	73.00 in	72	1.38 in
EG-F-053-012	72	81.50 in	2.00 in	77.63 in	4.50 in	75.50 in	72.25 in	730 lb	79.00 in	80	1.38 in

Facing in this dimensional series: 1/16 in raised face (RF).

A flat face (FF) can be specified with the inquiry.

Class designations are not direct pressure values. Confirm material grade, temperature, facing and the applicable standard edition before ordering.

Send the standard, class, size, material and quantity. Add a drawing for custom requirements.
